2.9 Inch 128x296 Four Color Epaper Monitor Display Rectangle

  • 1
  • 2
  • 3

Brand Name : ESEN

Model Number : EDEP0290RHS75BF6 V1.2

Certification : ISO9001/ISO14001

Place of Origin : Shenzhen China

MOQ : No MOQ

Price : can be negotiated

Payment Terms : L/C,T/T

Supply Ability : 300K/mth

Delivery Time : 6~14 working days

Packaging Details : Cartons, Capboard, EPE, Blister Tray.

Screen Size : 2.9 inch

Display Resolution : 128(H)×296(V)Pixe DPI:112

Active Area : 29.06×66.90mm

Pixel Pitch : 0.227×0.226mm

Pixel Configuration : Rectangle

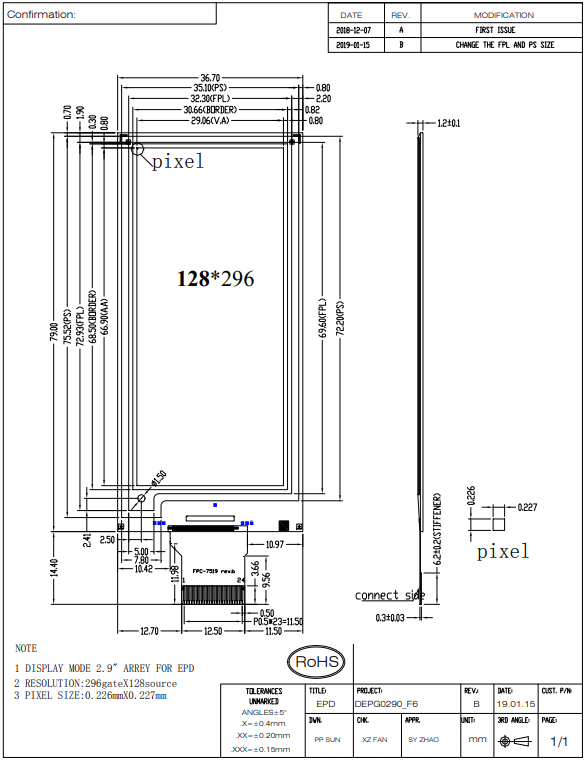

Outline Dimension : 36.7(H)×79.0 (V) ×1.2(D)mm

Weight : 5.5±0.5g

Contact Now

Over View

EDEP0290RHS75BF6 V1.2 is an Active Matrix Electrophoretic Display (AM EPD), with interface and a reference system design. The display is capable to display image at 1-bit white,black and red full display capabilities. The 2.9inch active area contains 296×128 pixels. The module is a TFT-array driving electrophoresis display, with integrated circuits including gate driver, source driver, MCU interface, timing controller, oscillator, DC-DC, SRAM, LUT, VCOM. Module can be used in portable electronic devices, such as Electronic Shelf Label (ESL) System.

Features

◆296×128 pixels display

◆High contrast High reflectance

◆Ultra wide viewing angle Ultra low power consumption

◆Pure reflective mode

◆Bi-stable display

◆Commercial temperature range

◆Landscape portrait modes

◆Hard-coat antiglare display surface

◆Ultra Low current deep sleep mode

◆On chip display RAM

◆Waveform can stored in On-chip OTP or written by MCU

◆Serial peripheral interface available

◆On-chip oscillator

◆On-chip booster and regulator control for generating VCOM, Gate and Source driving voltage

◆12C signal master interface to read external temperature sensor

◆Built-in temperature sensor

  • 2.9 Inch 128x296 Four Color Epaper Monitor Display Rectangle

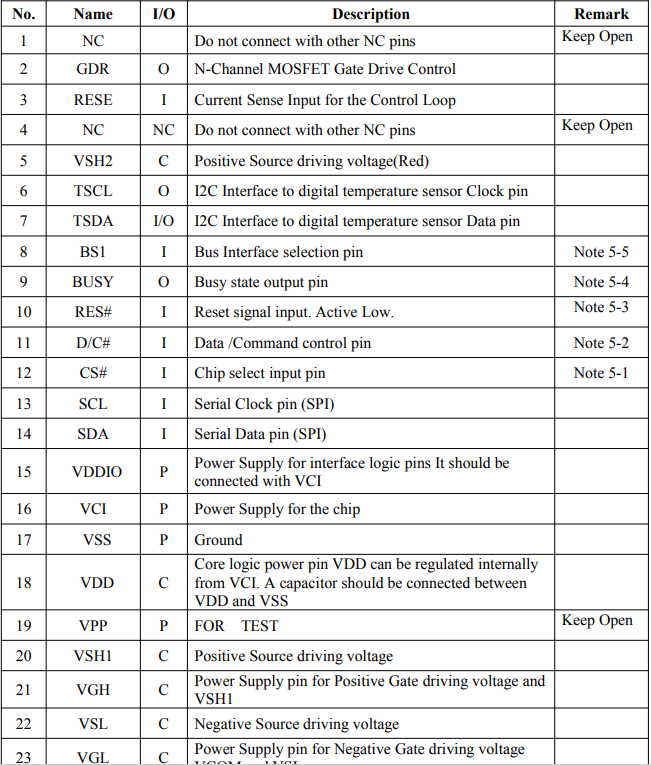

  • Input/output Pin Assignment
  • 2.9 Inch 128x296 Four Color Epaper Monitor Display Rectangle
  • 2.9 Inch 128x296 Four Color Epaper Monitor Display Rectangle
  • 2.9 Inch 128x296 Four Color Epaper Monitor Display Rectangle
