0.5'' Passive Matrix OLED LCD Display Monochrome OLED LCD

Name: 05 Passive Matrix OLED LCD Display Monochrome OLED LCD
Brand: ESEN
Price: 1 USD

0.5'' Passive Matrix OLED LCD Display Monochrome OLED LCD Manufactures

Brand Name : ESEN

Model Number : N050-8848TSWYG02-H14

Certification : ISO9001/ISO14001

Place of Origin : Shenzhen China

MOQ : 1000PCS

Price : Please make an enquiry

Payment Terms : T/T,L/C

Supply Ability : 300K/mth

Delivery Time : 2-4 weeks

Packaging Details : All the products are packed in right way

Size : 0.5 inch

Display Mode : Passive Matrix

Display Color : Monochrome (White)

Drive Duty : 1/48 Duty

Outline Drawing : According to the annexed outline drawing

Number of Pixels : 88 × 48

Panel Size : 8.928 × 17.1 × 1.227 (mm)

Active Area : 6.124 × 11.244 (mm)

Pixel Pitch : 0.128 × 0.128 (mm)

Pixel Size : 0.108 × 0.108 (mm)

Contact Now

0.5'' Passive Matrix OLED LCD Display Monochrome OLED LCD

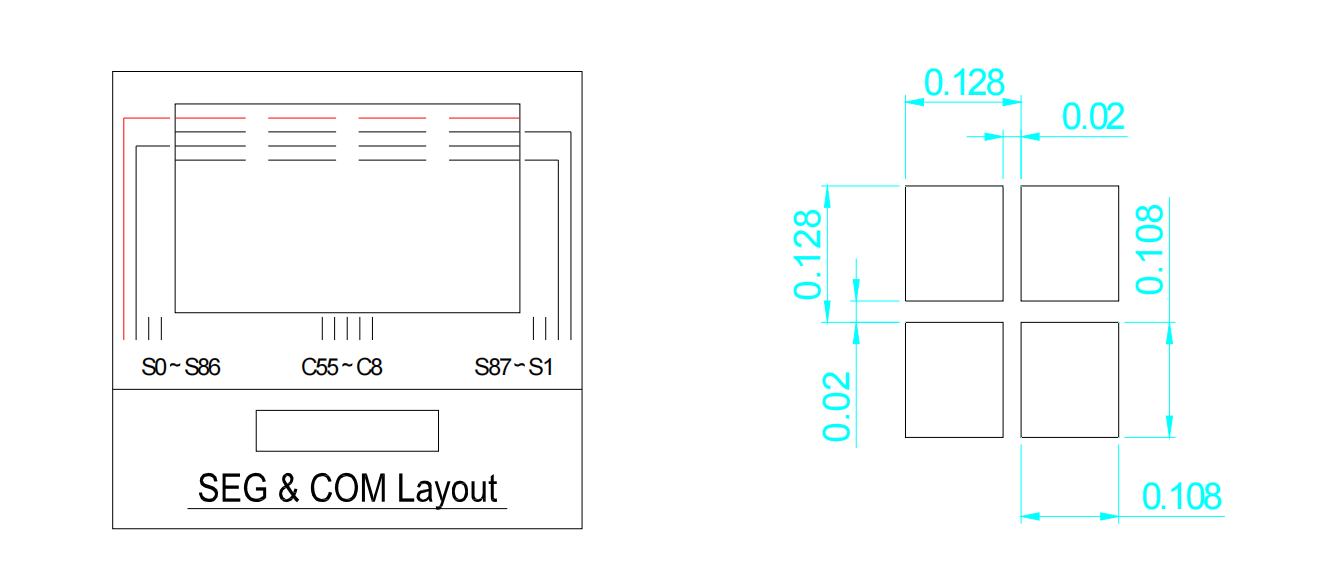

Active Area / Memory Mapping & Pixel Construction

0.5'' Passive Matrix OLED LCD Display Monochrome OLED LCD

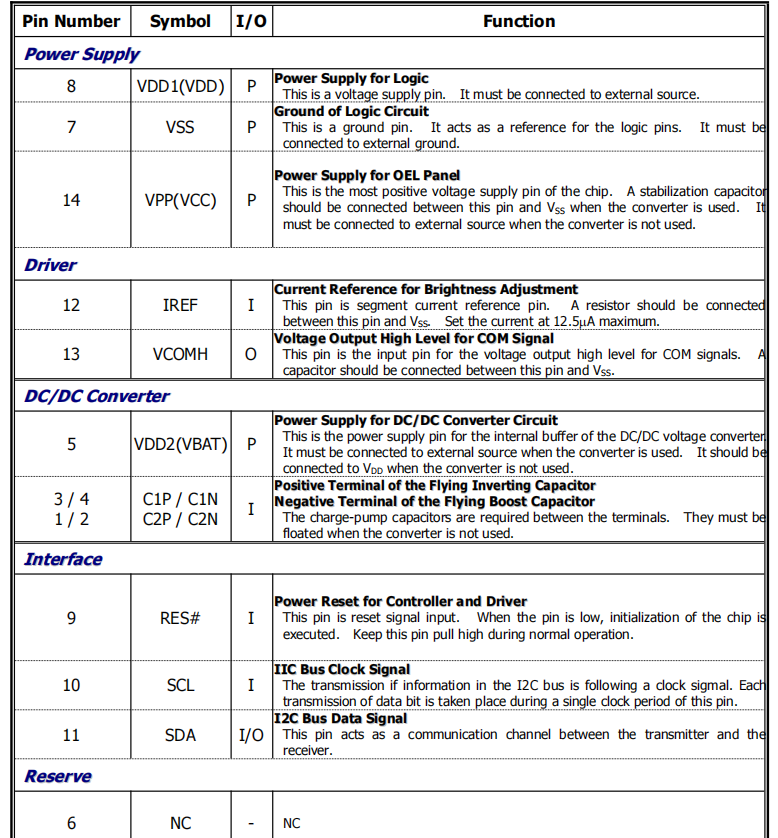

Pin Definition

Absolute Maximum Ratings

Parameter	Symbol	Min	Max	Unit	Notes
Supply Voltage for Logic	VDD1	-0.3	3.6	V	1,2
Supply Voltagefor Display	VPP	-0.3	14.5	V	1,2
Supply Voltage for DC/DC	VDD2	-0.3	4.8	V	1,2
Operating Temperature	TOP	-40	85	°C
Storage Temperature	TSTG	-55	125	°C	3
Life Time(380cd/m2)		10,000	-	hour	4
Life Time(300cd/m2)		30,000	-	hour	4
Life Time(240cd/m2)		50,000	-	hour	4

FAQ:

Q: If there is a problem with the product, what is the after-sales service like?
A: If customers encounter any technical problems during use, our after-sales service team will provide remote online technical support to ensure that customers can solve the problem smoothly.

Q: How to customize the product?
A: Customers can customize the module shape, backlight brightness, LCD interface, etc. according to their own needs. We will provide personalized solutions according to the specific requirements of customers.

Q: How to get technical support?
A: If customers need technical support when using TX080HD-30MB-CT, they can contact our technical team by email, and we will reply within 24 hours.

Q: Do you provide samples?
A: Yes, we support sample application, and customers can get samples for testing and evaluation before placing an order.
